Designed to reduce assembly time while increasing safety when dealing with misaligned casing bolt holes, performing the function of casing dowels.

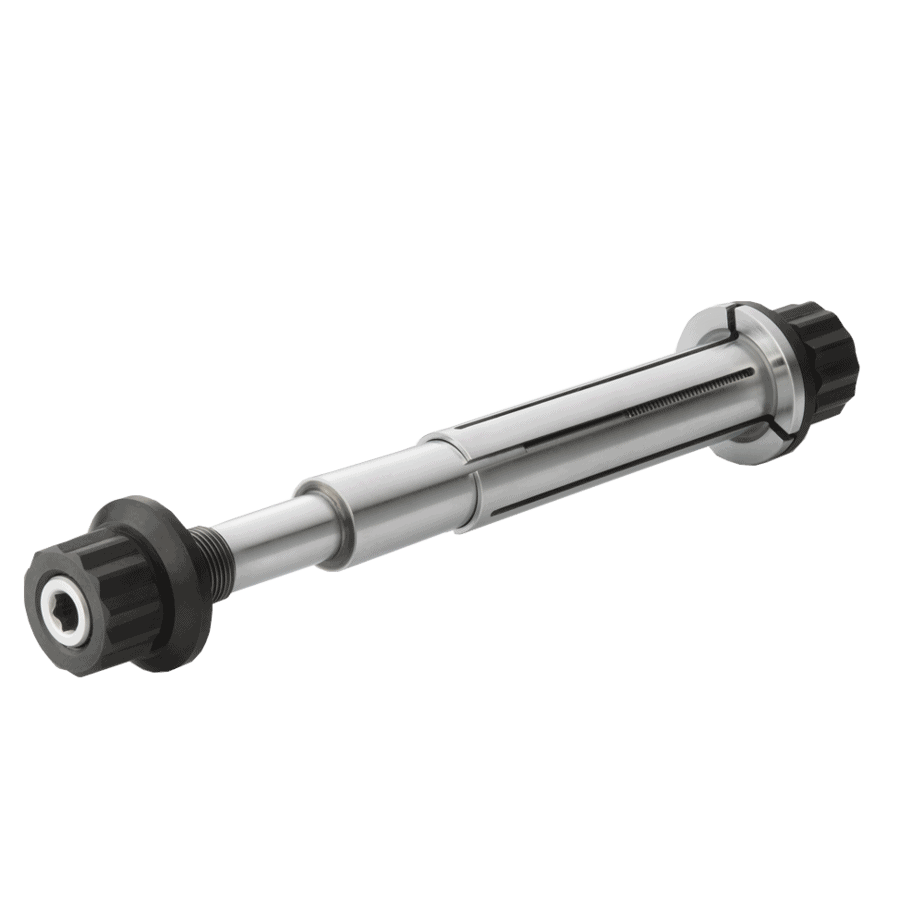

Casing Alignment Pin
The Casing Alignment Pin is designed to reduce assembly time while increasing safety when dealing with misaligned casing bolt holes, performing the function of casing dowels. Conventional bolt alignment methods consist of bolt torque sequencing or hammering studs which is time consuming and could possibly lead to damaged components.
Casing Alignment Pin Features
The Casing Alignment Pin solves the need for bolt torque sequencing or hammering studs by using a two-piece alignment system which consists of a collet and tapered pin. This gives the user the ease of a drop-in installation but also providing the angular force necessary to correct the misalignment. The Casing Alignment tool’s internal taper provides strong alignment forces and eliminates sliding damage in the hole. If you have a need for the product in a specific application or have space requirements, Riverhawk can design a custom solution for you.
Casing Alignment Pin Benefits
- Aligns and closes gaps on casing bolt holes
- Simple installation and removal
- Loose collet fit for ease of installation
- Reduce assembly time and component damage
- No modifications needed to install or remove
