Hose - Riverhawk

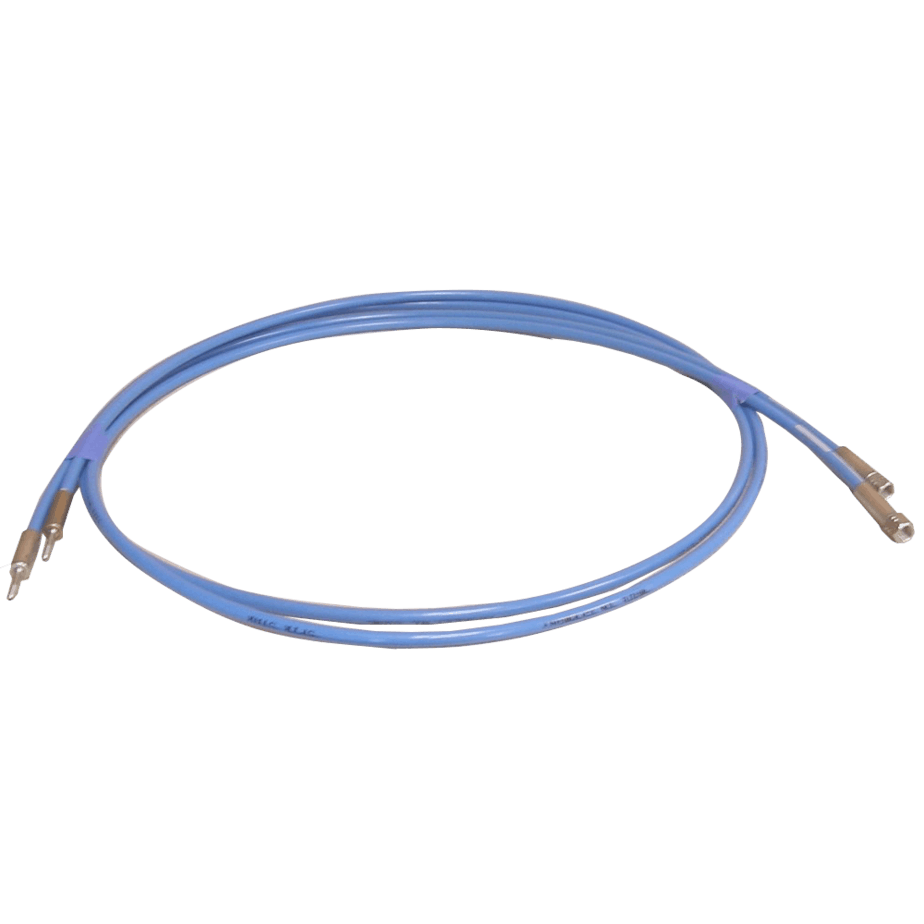

High Pressure Flexible Hoses

A wide range of high-pressure flexible hoses in various lengths and pressure ratings as well as various end connections.

Riverhawk offers a wide range of high-pressure flexible hoses in various lengths and pressure ratings as well as various end connections.

  • Flexible Hose Material
    • Easier to Use Over Traditional Hard Piping
  • Rated up to 40,000 PSI (275MPa) in Hydraulic Pressure
    • Standards are available at 10,000 PSI, 20,000 PSI, 21,750 PSI, 26,000 PSI, 31,250 PSI and 40,510 PSI rated pressure
  • Standard Length Provided is 10 FT.
    • Different Custom Lengths Available
  • Burst Pressure is 2.5 Times Rated or Working Pressure

High-Pressure Flexible Hose End Connections

  • Male and Female HP4 (9/16” – 18 TPI)
  • Male and Female HP6 (3/4” – 16 TPI)
  • 1/8”, ¼”, 3/8” NPTM
  • Type “M” Swivel Connections
