Coupling Installation

Installation Equipment

Gauges, Tools & Pump Kits

For many years, Riverhawk has provided hydraulic hub installation kits including hydraulic pushers, pullers, pump kits, fittings, gauge sets, and lapping tool sets. Applications range from 1.75" to 12" shaft sizes. Each application is reviewed by engineering for standard or custom tooling selection.

Request a Quote Speak to an Engineer

Installation Tool Range

Hydraulic Clamp Hub

Alternative method of connecting coupling hubs to machinery shaft ends. Allows higher interference fit than traditional methods for significant increase in torque transmission.

Learn More

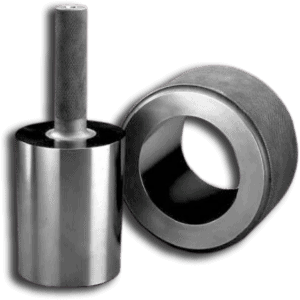

Plug & Ring Gauges

Used to ensure the taper of a hub and shaft have proper contact to allow torque transmission. Once the ring and plug match, they confirm the hub and shaft have the same taper.

Learn More

Lapping Tools

A set of sacrificial gauges designed to repair light damage or restore the taper to a specific coupling hub or shaft end. Taper contact 95% or greater guaranteed.

Learn More

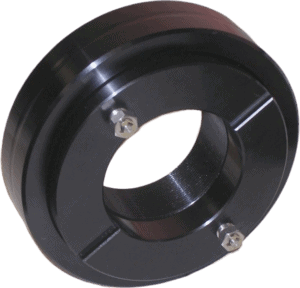

Hydraulic Pusher

Used to install a taper bore hub on a shaft to a specific pull-up distance. Hardened alloy steel, pressure tested, delivered fully assembled with seals and fittings.

Learn More

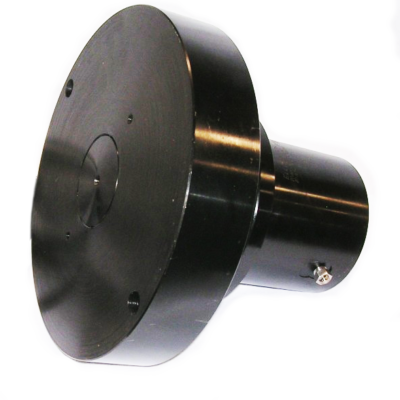

Hydraulic Puller

Hydraulic tooling designed to assist in the removal of shrink fit straight and stepped bore hubs. Accommodates keyed, keyless, and stepped hub styles.

Learn More

Shaft Size Coverage: 1.75" to 12"

Every application is reviewed by Riverhawk engineering, where standard or custom tooling is selected and designed for ease of installation or removal. Contact us with your shaft and hub specifications.

Pump Kits & Accessories

Manual and air-driven pump kits plus high-pressure hoses and fittings for coupling hub installation applications.

Air Driven Hydraulic Pump Kit

An efficient, compact and portable high-pressure system that provides instant and reliable hydraulic power. Pressures up to 40,000 psi.

Learn More

Manual Hydraulic Pump Kit

Available in single or dual pump configurations. Dual pump design provides low pressure on the pusher while simultaneously putting high pressure in the hub's dilation port.

Learn More

High Pressure Flexible Hoses

Wide range of high-pressure flexible hoses in various lengths and pressure ratings with swivel fittings and six layers of wound steel pressure support.

Learn More

High Pressure Hydraulic Fittings

Manufactured from stainless steel and heat-treated alloy steel. Standard and custom fittings available for any specific application.

Learn More
